What to Consider When Upgrading Equipment Layouts
Production managers run into the same problem when buying new equipment. They want better output but have no room to expand. Bigger facilities aren’t always the answer. Smart layout planning fits more capability into your current space.
Equipment upgrades fail when companies only think about the machine. They forget the space around it and how workers use it daily. They also miss how it connects to other processes. A solid plan prevents costly mistakes and builds long-term efficiency.
Measure Your Available Space First
Get accurate floor measurements before you shop for new equipment. Take a tape measure and document your current space dimensions. Write down ceiling height, column locations, and where utilities connect. Many manufacturers guess wrong about clearance needs.
Your measurements need to cover more than machine size. Think about space for maintenance access and material handling. Consider where operators need to move around the equipment. A machine might fit on paper but still create bottlenecks. Add three feet of clearance on all sides where people work regularly.
Vertical space matters just as much as floor area. Some modern systems like an automatic pallet changer work within the existing machine footprint. They use internal automation instead of external storage. This method cuts down on floor space needs. You can double capacity without expanding sideways.
Map Current Workflow Patterns
Watch how your team moves materials for a full week. Write down where they walk, wait, or backtrack. These patterns show hidden problems that better placement can fix. Workers build habits around current layouts. Those habits might not work with upgraded equipment.
Track Material Movement
Follow parts from receiving to shipping areas. Mark spots where materials pile up or sit idle. Note where operators walk too far between steps. Good equipment placement cuts these wasted motions. Position new machines to create straight paths instead of zigzags.
Here are the main workflow areas to document:
- Receiving dock to first processing station
- Between processing steps and quality checks
- From final assembly to shipping prep
- Tool and supply storage access points
Account for Different Shifts
Day shift often handles materials differently than night shift. Your layout needs to work for both teams. Missing this creates solutions that help some workers but hurt others. Spend time watching both shifts operate before finalizing plans.
Plan for Equipment Integration
New equipment rarely stands alone in a facility. Think about connections to existing machines and systems. Data cables need routing along with power and compressed air. Plan these connections early to skip expensive changes later.
Check your current equipment condition and what it can do. Older machines might need updates to work with newer systems. Sometimes layout changes require updating controls across multiple machines. Budget for integration costs upfront instead of finding them mid-project.
Test Before You Commit
Use cardboard mockups or floor tape to test your plan. Mark the exact footprint and walk through simulated operations. This hands-on check catches spacing problems that drawings miss. Move mockups around until the workflow feels right to your team.
Account for Operator Movement and Safety
Operators need clear paths to controls, materials, and maintenance points. Tight layouts increase injury risk and slow everything down. OSHA recommends minimum aisle widths of 36 inches for one person. Allow 48 inches where equipment or carts pass through.
Maintain Clear Sightlines
Position equipment so operators can see adjacent processes easily. They shouldn’t walk around obstacles to check on other stations. This visibility helps teams coordinate better and catch problems faster. Natural light should reach work areas when possible.
Plan Emergency Exits
Every operator needs two paths out of their work area. Blocked aisles during emergencies create serious problems. Check local fire codes before you finalize layouts. Safety guards and barriers need space too. Some machines require fencing that extends several feet out. Factor this into total space requirements.
Key safety spacing requirements include:
- Primary and secondary exit routes from each station
- Clearance zones around moving equipment parts
- Access paths for emergency response teams
- Space for lockout/tagout procedures during maintenance
Future-Proof Your Layout Decisions
Think about where your operation might grow in five years. Leave room for logical equipment additions. A cramped layout today blocks obvious improvements tomorrow. Plan space for at least one more machine in each work cell.
Build in Extra Capacity
Utility infrastructure should handle future needs, not just current equipment. Install extra electrical capacity and data drops during initial changes. Adding these later costs three times as much. It also disrupts production schedules. Over-spec your utilities by 25 percent as a buffer.
Stay Flexible
Modular equipment placement gives you flexibility for process changes. Skip permanent installations where movable setups work fine. Bolted-down equipment limits options when market demands shift. Keep layouts adaptable so you can reconfigure quickly.
Technology keeps getting better and cheaper every year. Your layout should accommodate automated material handling even if you’re not ready yet. Reserve floor space and utility access for future automation. The National Institute of Standards and Technology tracks manufacturing technology trends that can guide planning decisions.

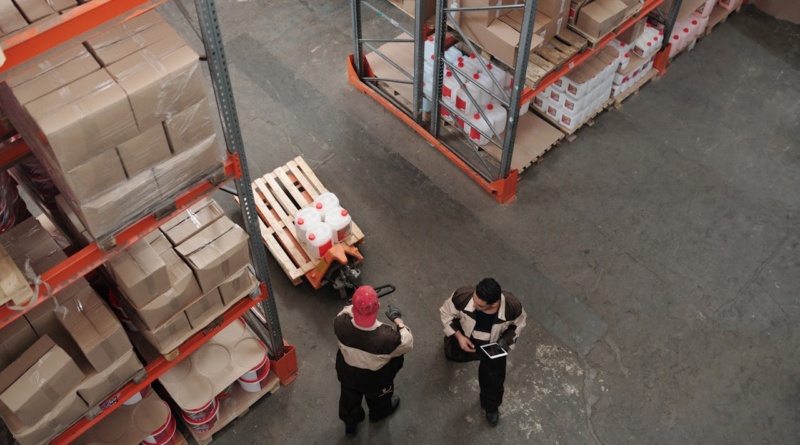

Photo by ELEVATE
Getting the Most From Layout Changes
Good planning balances immediate needs with future flexibility. Start with accurate measurements and honest workflow analysis. Extra planning time beats expensive do-overs every time.
Get your operators involved in layout decisions early. They know where current setups cause problems daily. They also spot where improvements help most. Their input prevents mistakes that look good on paper but fail in real life. Walk through plans with your whole team before making major changes.
